Kinetic Pixel Curtain - Car Reveal
The centerpiece installation of BMW's GKL 2018 program — a modular kinetic system designed to cover, animate around, and finally reveal the new luxury models, realised in the Zurich BMW brand store.
BMW's 2018 Global Key Launch program — "The Art of Owning the Moment" — marked the brand's move further into the luxury segment, anchored by the new 8 Series, the X7, the next 7 Series and the M8. The strategic direction came from BMW: a sequence of launches that had to feel personal rather than transactional, with the visitor invited to choreograph the unveiling rather than receive it.
Luxoom's brief was to translate that strategic direction into experiential design and make the result deployable across the brand store network globally. The deliverable was a full stylebook covering the exhibition concept, the centerpiece installation, the interaction logic, the surrounding interior, the partner programme, and three scaling formats — large, medium and small — so the same experience could run in a BMW Brand Store, a Driving Center, or an Urban Store. The Kinetic Pixel Curtain is the centerpiece around which the rest of the system is built.

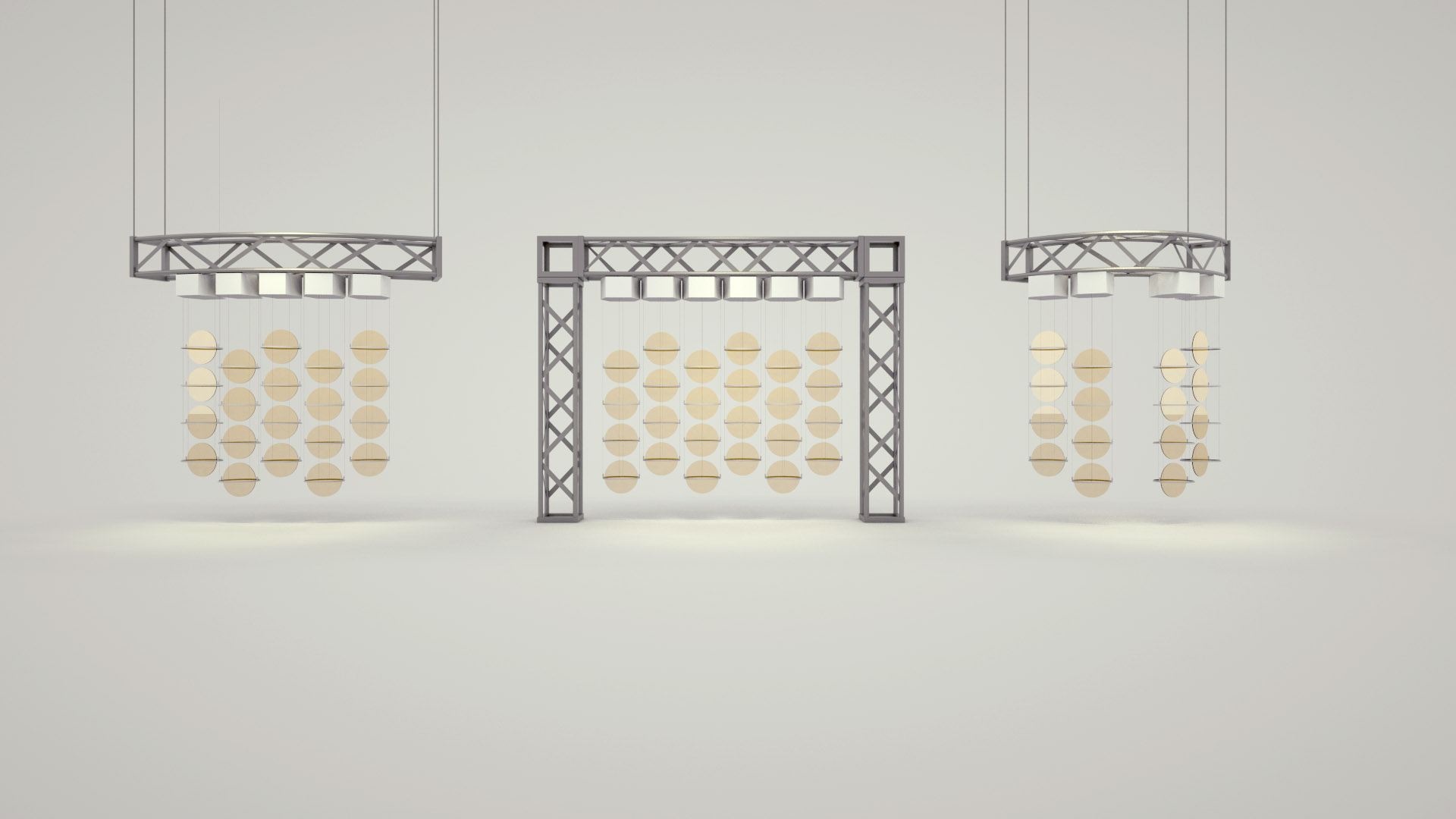

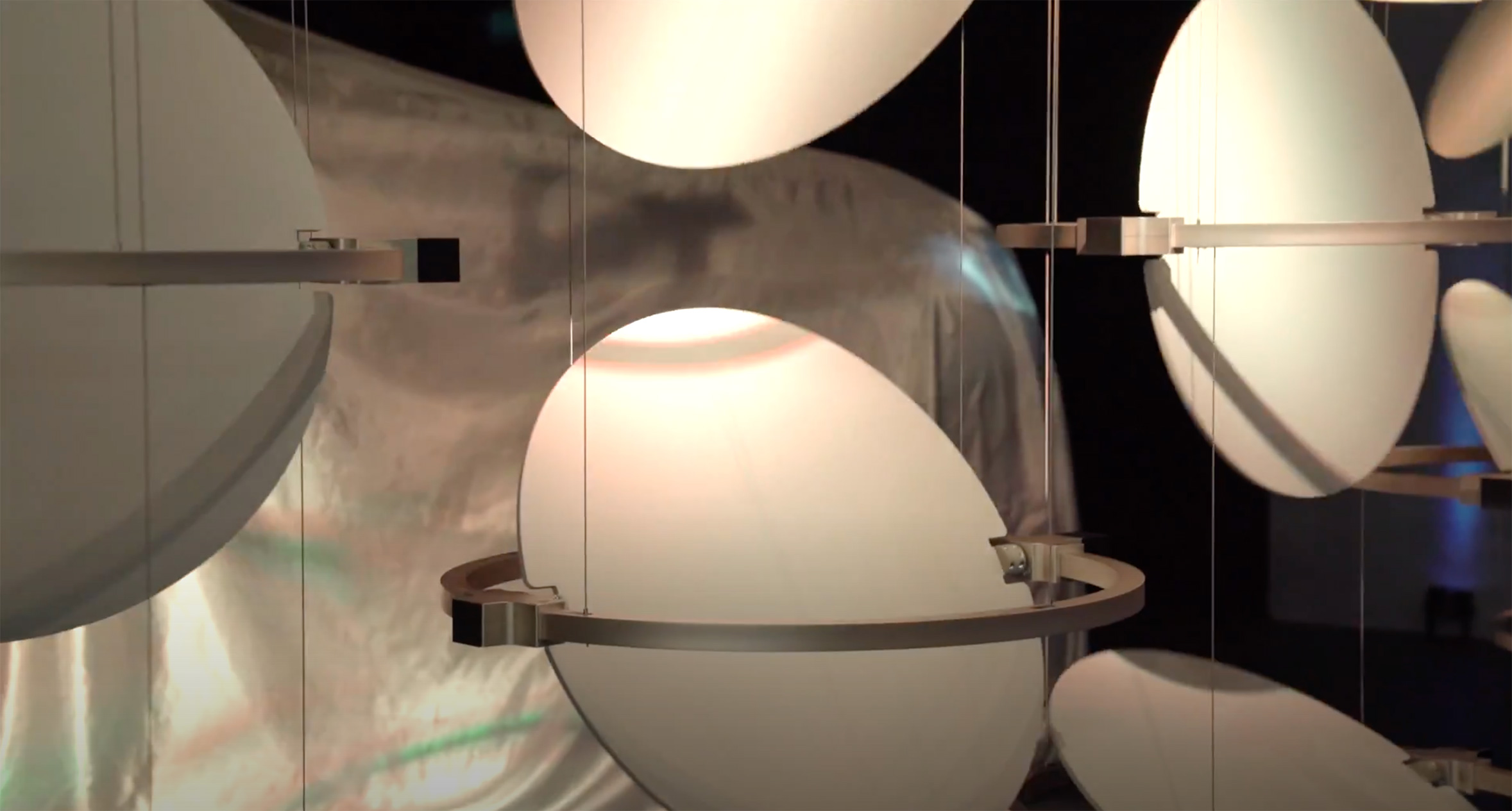

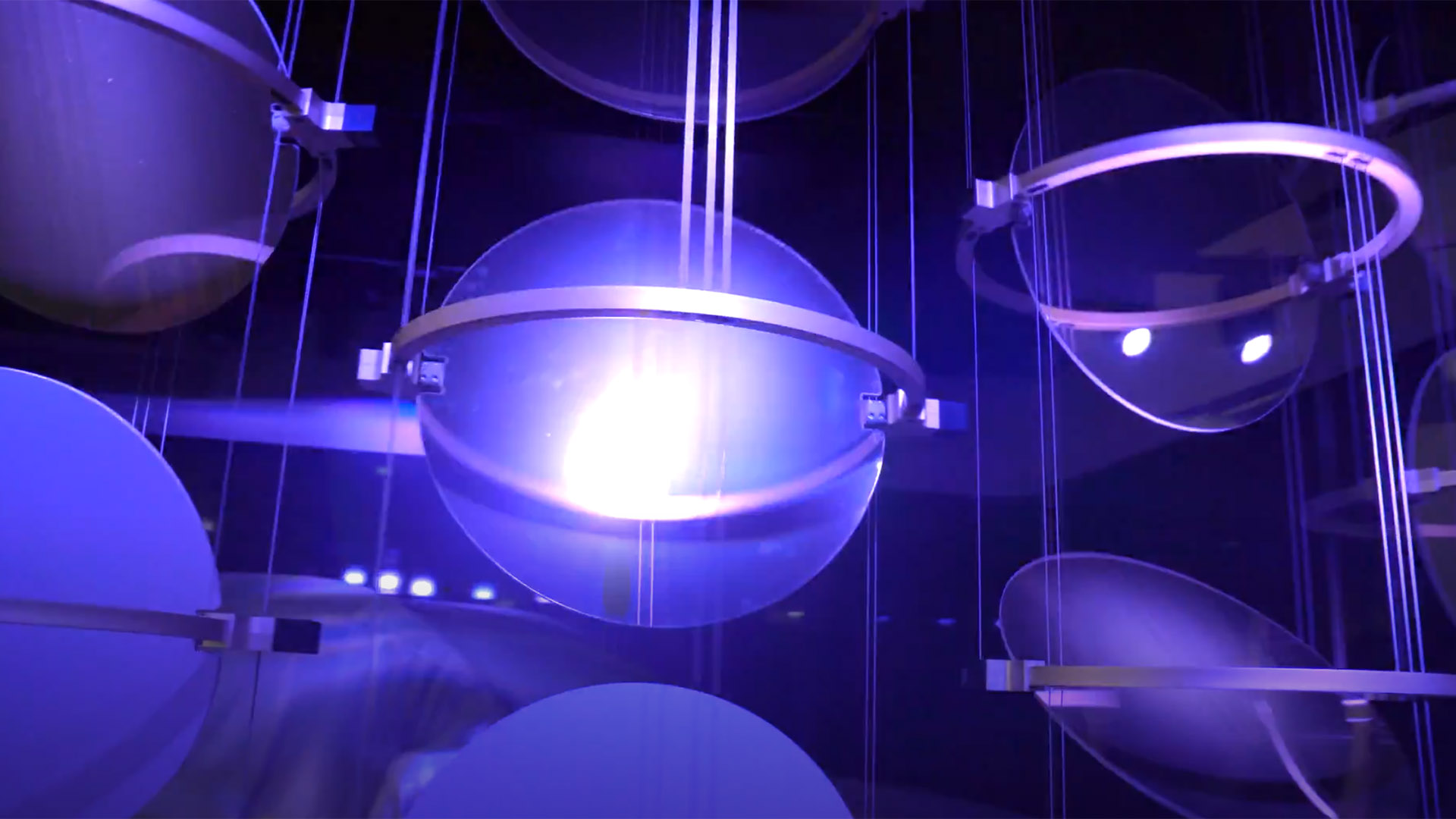

The Kinetic Pixel Curtain is a modular kinetic installation. Each module carries up to four disc-elements suspended beneath a truss; modules combine in straight lines, curves or gaps. The discs rotate freely and move vertically, which lets the curtain form continuously changing patterns rather than holding a single state. Each disc has two sides: a gold-mirrored face that catches and throws light, and a silver-matte face that takes video projection. The same surface is mirror or screen depending on which side is turned to the room.

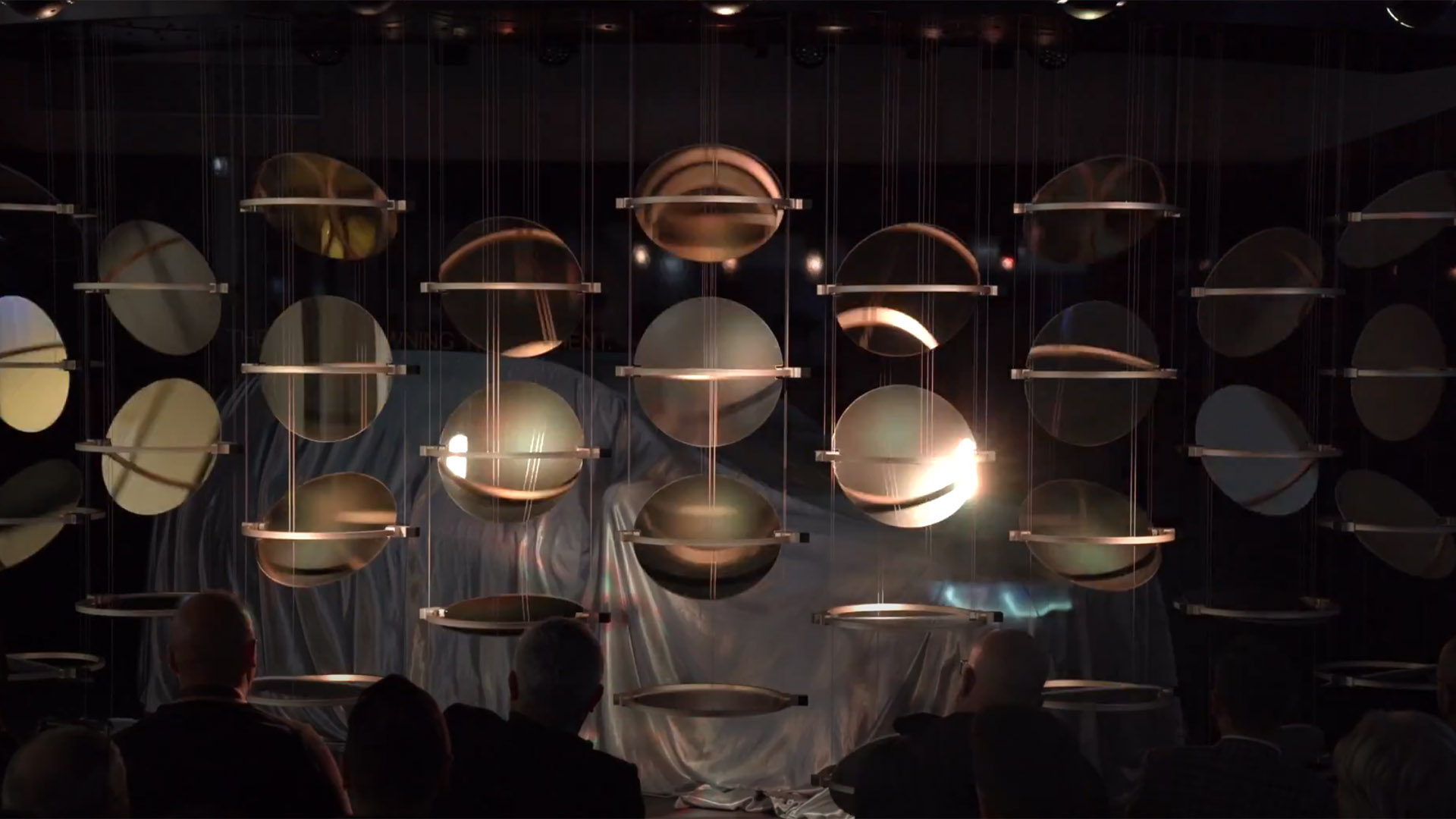

The car is behind the curtain. As visitors enter, the curtain is closed and shows the gold-mirrored side — sparkling, reflective, opaque to what's behind it. Choreographies of motion, light, colour and projected content play across the discs, with audio and RGB spotlights tuned to the same sequence. Visitors can influence the choreography from an interaction dashboard — a Leap-sensor stand with a screen, designed to be slim enough not to block sightlines to the curtain itself. Sequence and speed respond to hand movement, so the unveiling is partly the visitor's own. When the curtain finally rises, the integrated light ceiling dims up and the car is alone in the room.
The stylebook specifies the system at three sizes. The full L-scale configuration belongs in a BMW Brand Store; M-scale fits a Driving Center or a brand section within a Niederlassung; S-scale runs in an Urban Store without the vertical disc movement. The modules connect to standard event truss systems and daisy-chain over DMX512, so the same units can serve permanent installations and event-based temporary setups. Same system, three scales, multiple geometries.

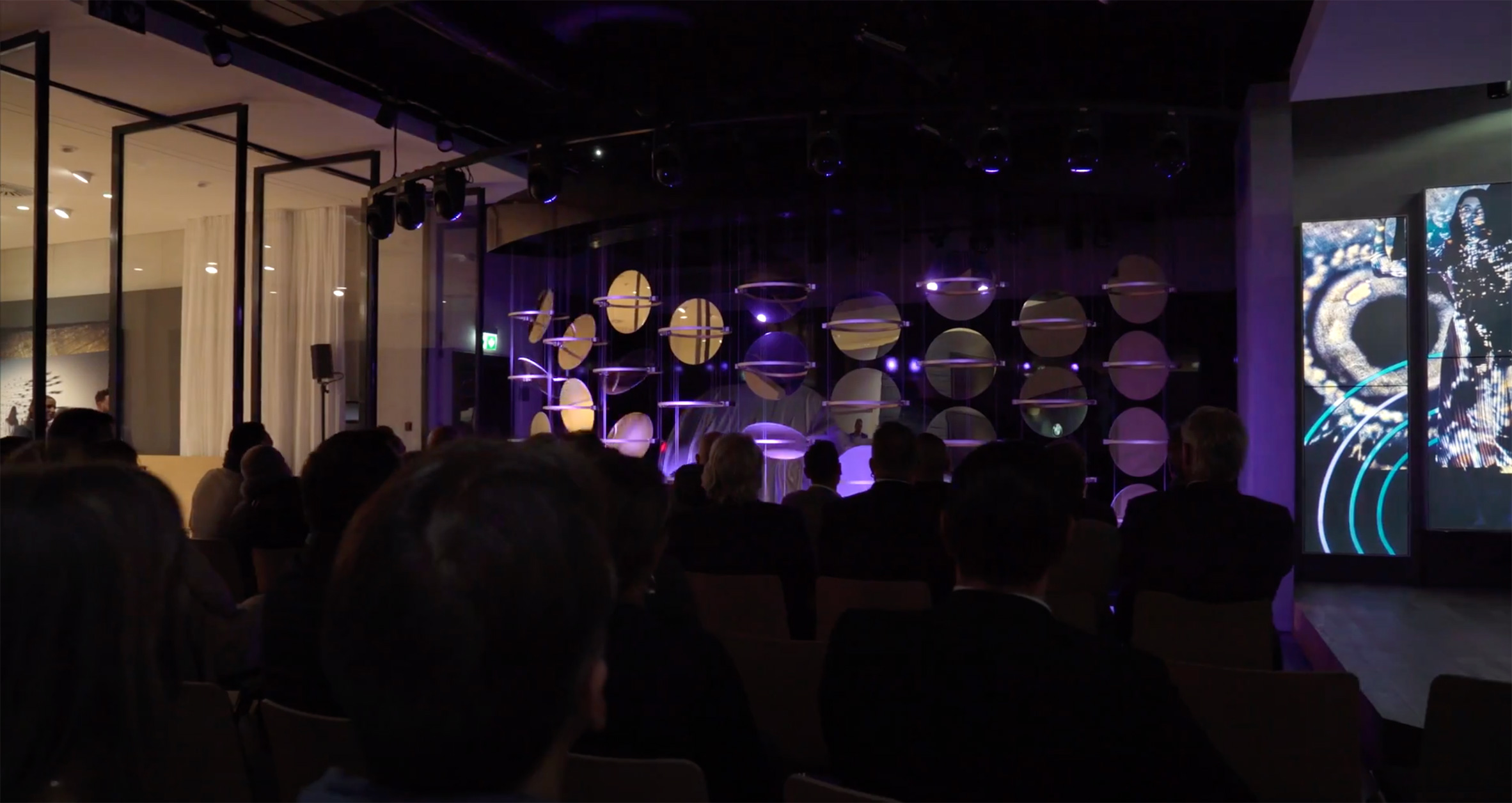

The system was realised in the Zurich BMW brand store, where the KPC, the interaction dashboard, the interior elements and the partner-curation programme came together as one operational installation. Zurich is the implementation against which the stylebook was tested — the place where the choreography, the reveal sequence, and the visitor flow stopped being specifications and started being an experience.
The Kinetic Pixel Curtain went into operation as the centerpiece of the GKL 2018 program at Zurich, and the stylebook became the reference for how the program could be deployed across the wider brand store network. BMW's "Own the Moment" claim — that the visitor choreographs their own encounter with the car — was made operational rather than rhetorical: visitors aren't shown the car, they bring the car into view.
The KPC sits inside Luxoom's five-year working relationship with BMW on flagship store exhibitions and closed-room programmes — alongside Meet the Future, Get the DNA, and other commissions across the same store network. Luxoom designed the exhibitions and experiences inside the stores; the stores themselves were always BMW's. The continuity matters because each programme built on the visual and operational logic of the previous one, and the KPC is the moment that logic was tested at full luxury-segment scale.
